A complete technical kitchen package — plans, sections, platform details, coordinated services and cabinetry logic.
Browse the full drawing set using the arrows or thumbnails.
Vertical cabinetry detail along Section B.
Counter and overhead resolution along Section C.

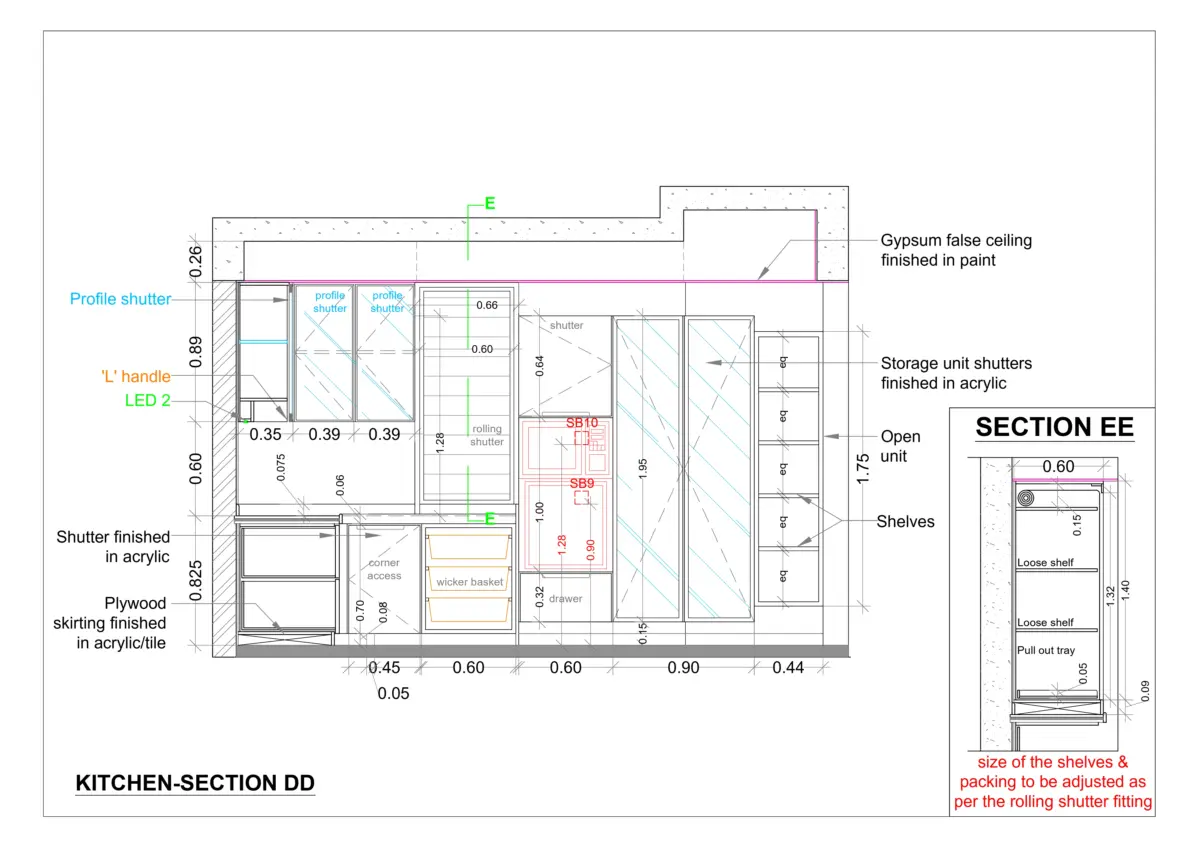

The tall-unit and appliance wall along Section D.

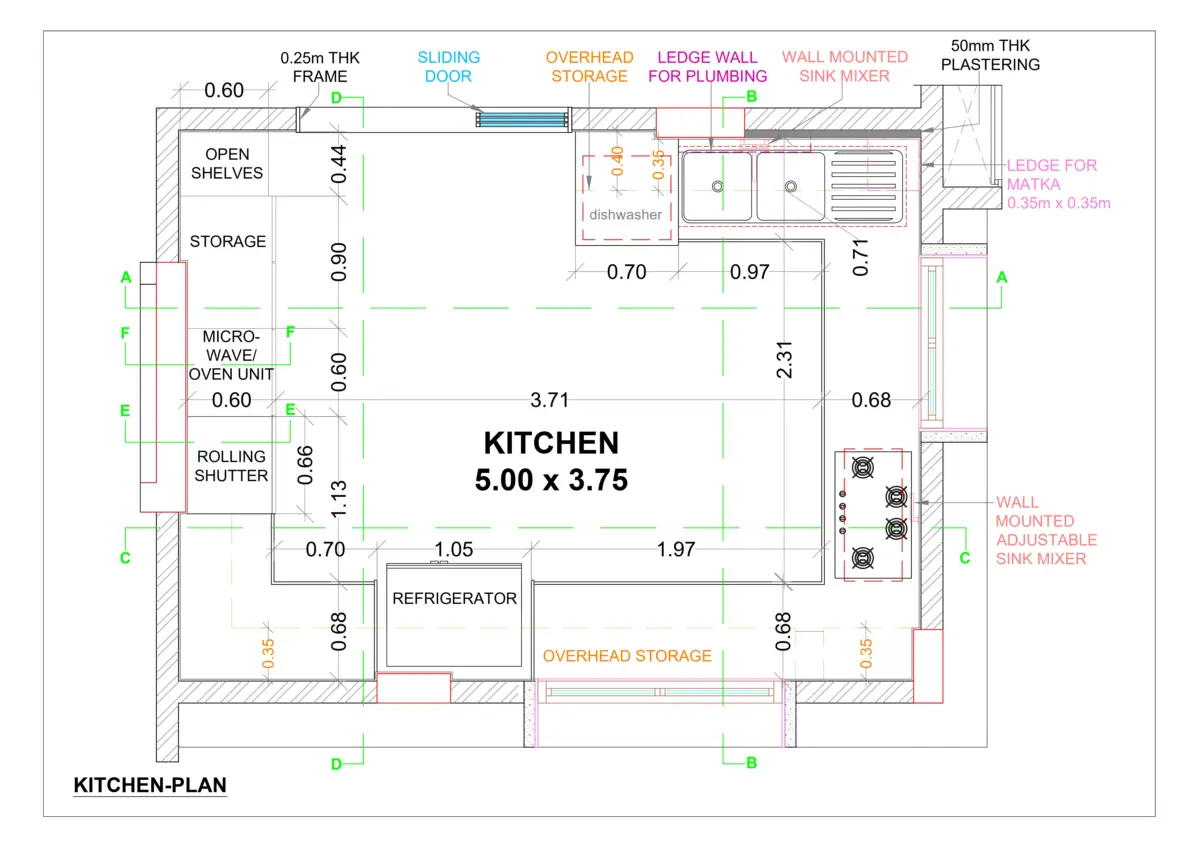

The master plan — layout, appliances and workflow.

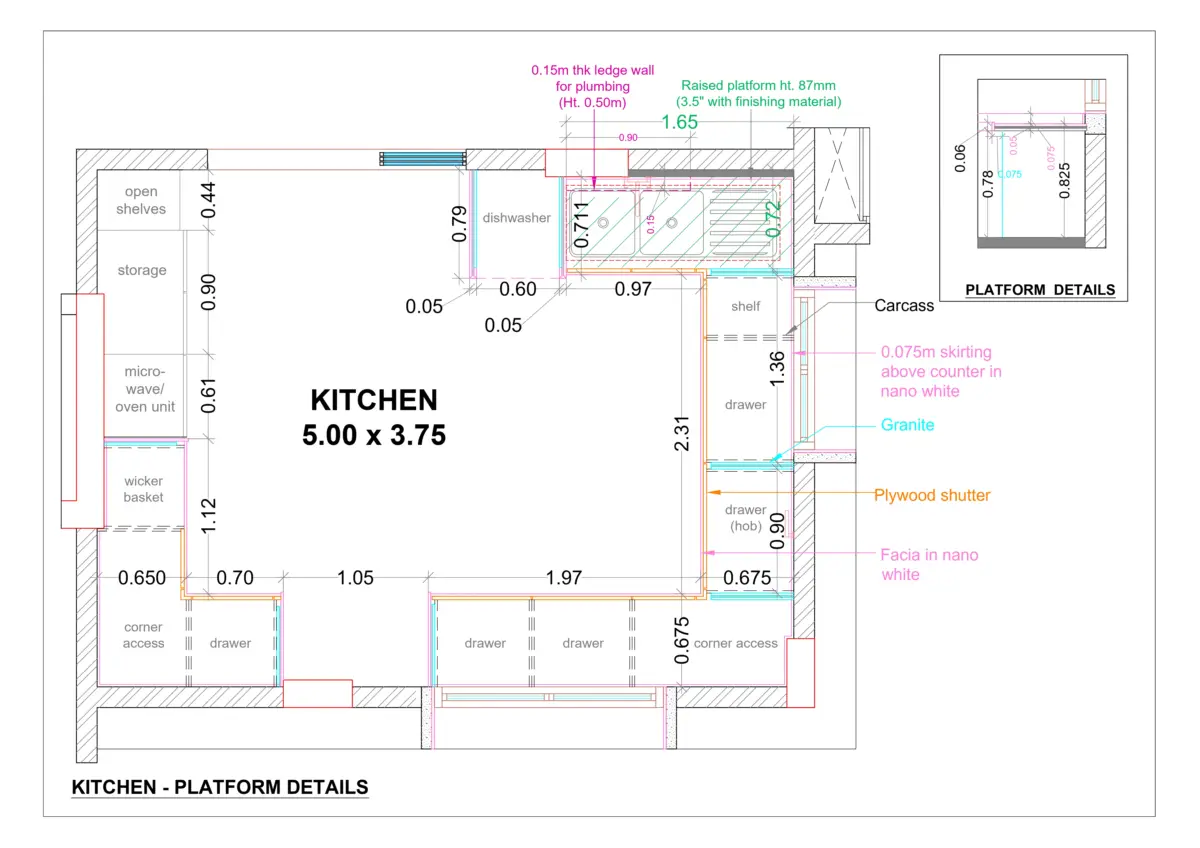

Platform heights, depths and service points, dimensioned for site.

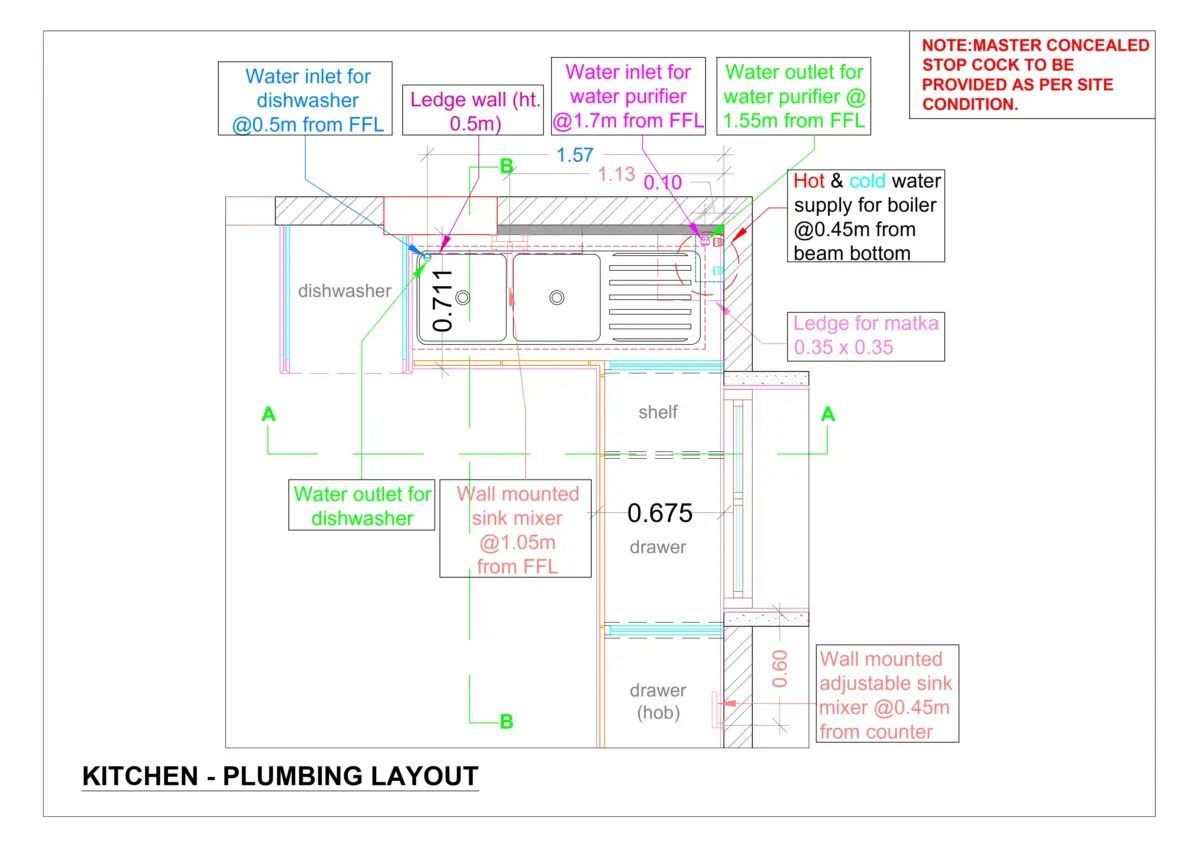

Water supply and drainage routed around the working layout.

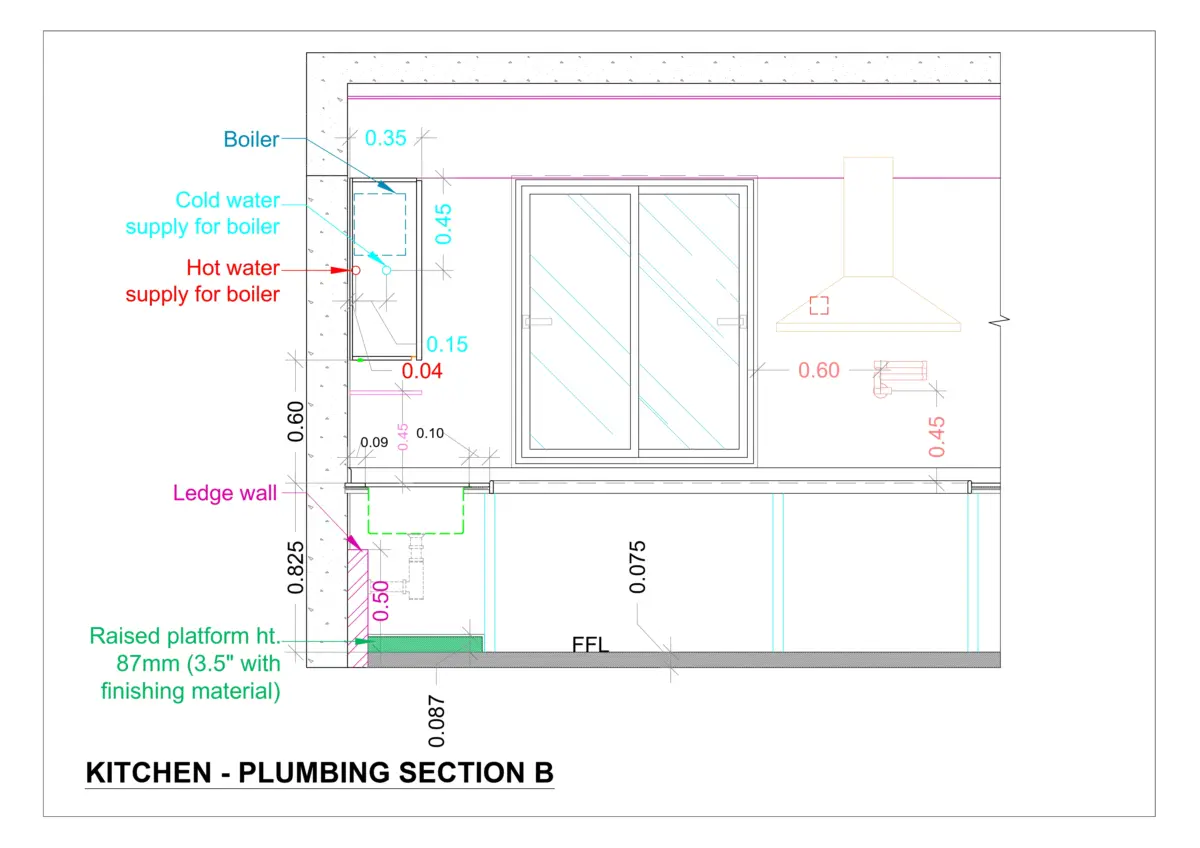

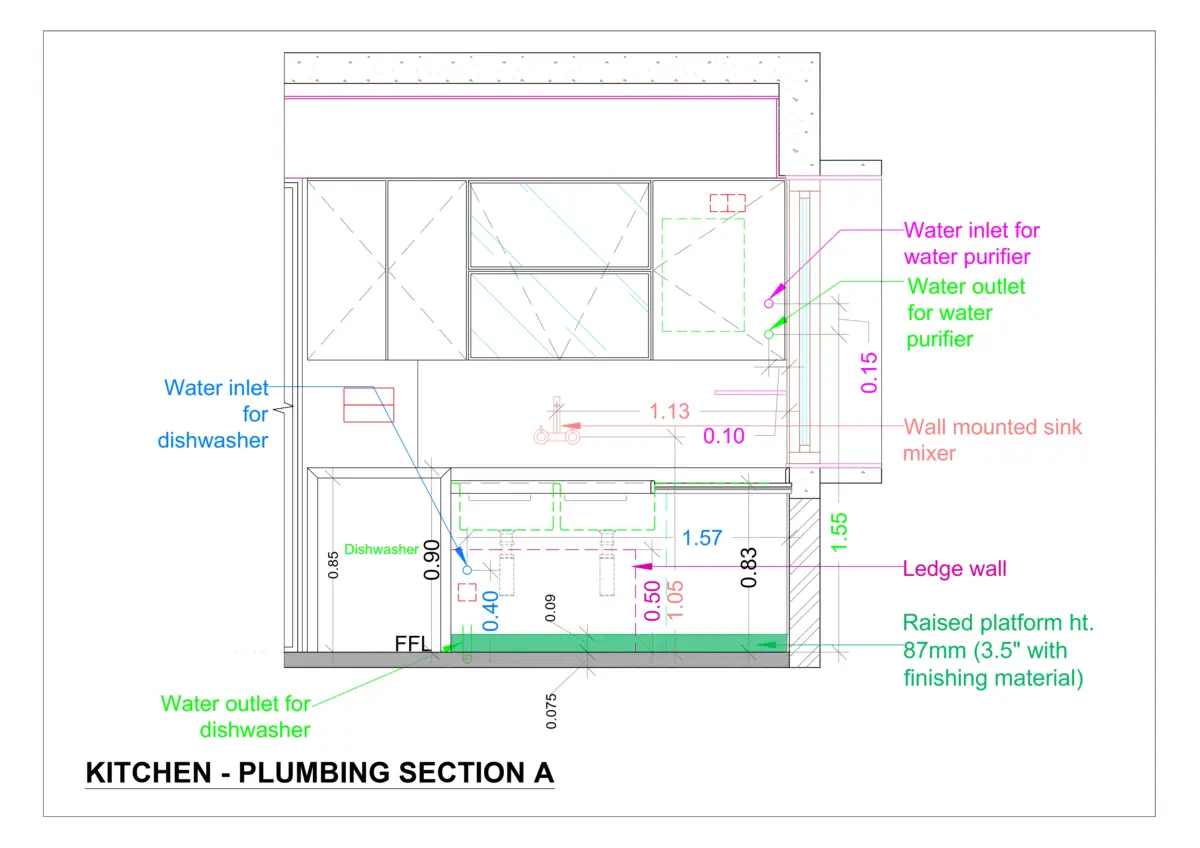

Plumbing coordination read in vertical section.
A second plumbing section closing out the wet services.

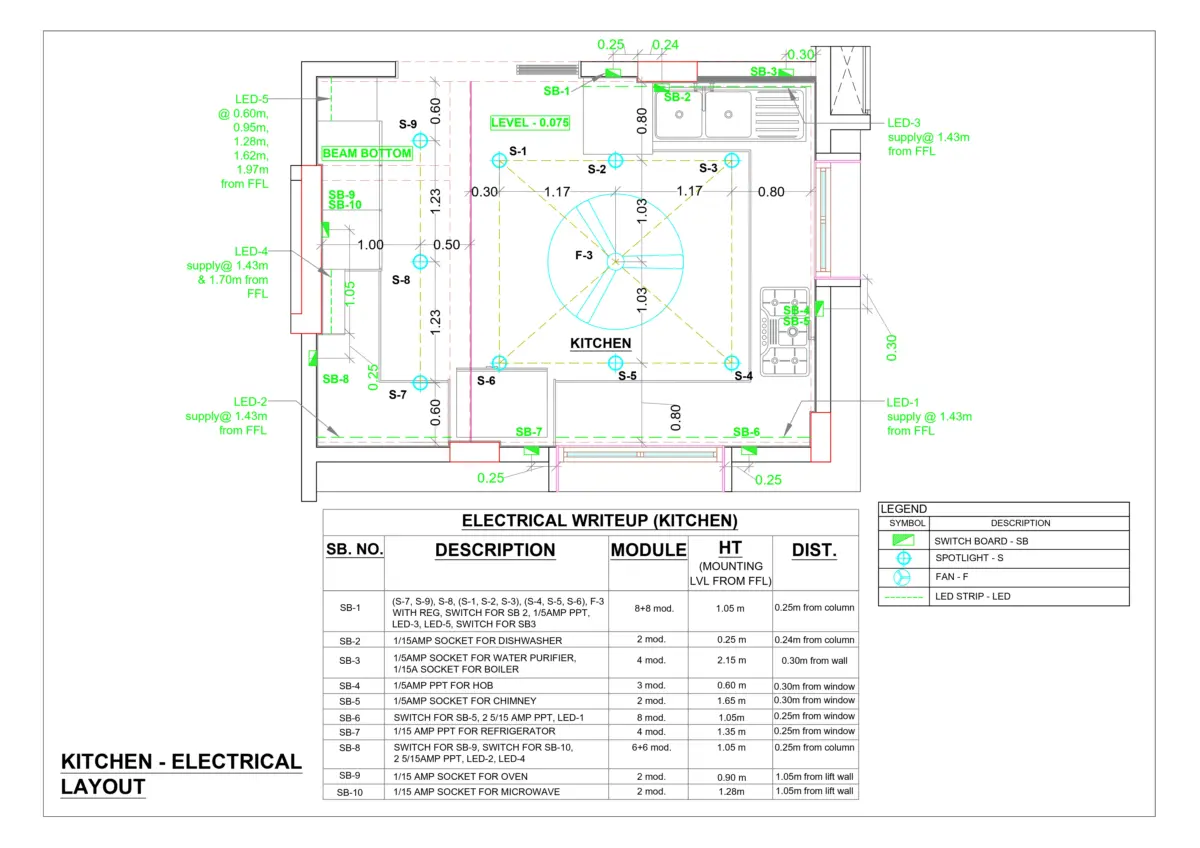

Sockets, switches and lighting mapped to the cooking workflow.

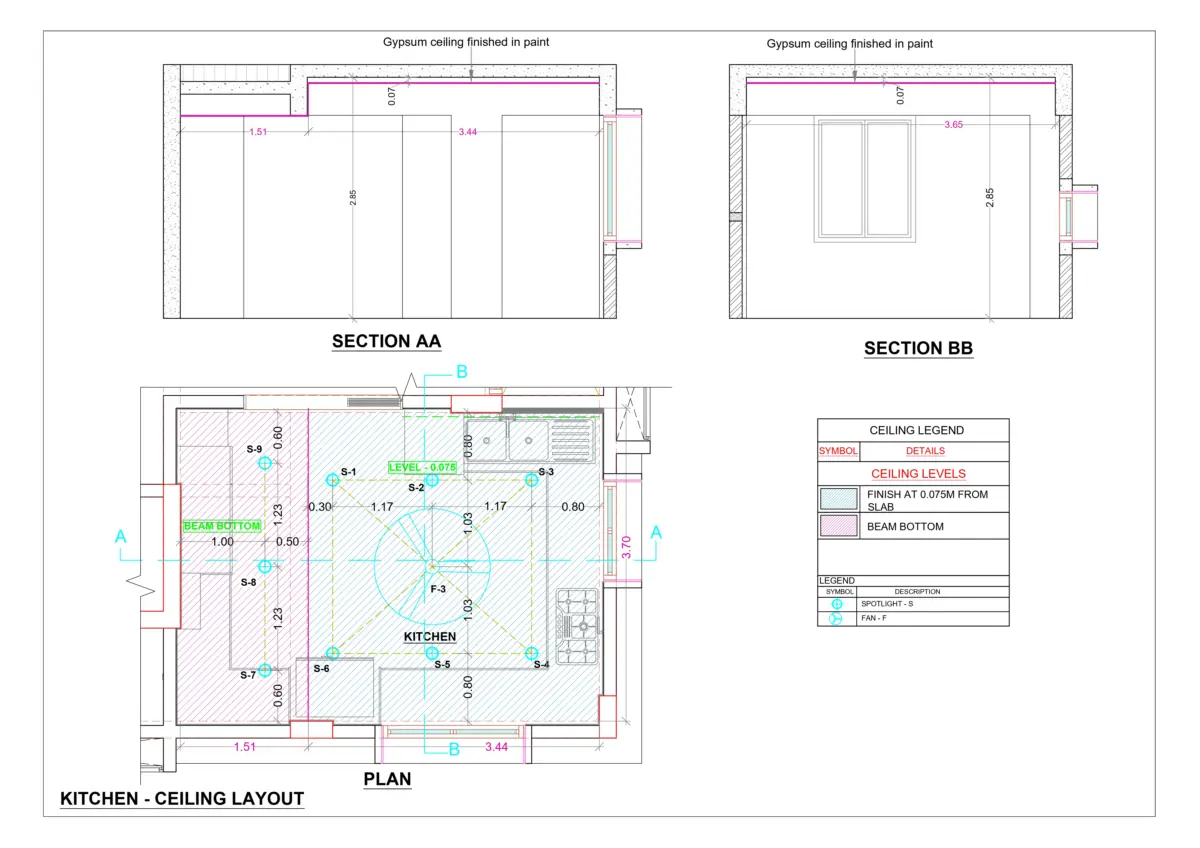

The false-ceiling and lighting plan over the kitchen.

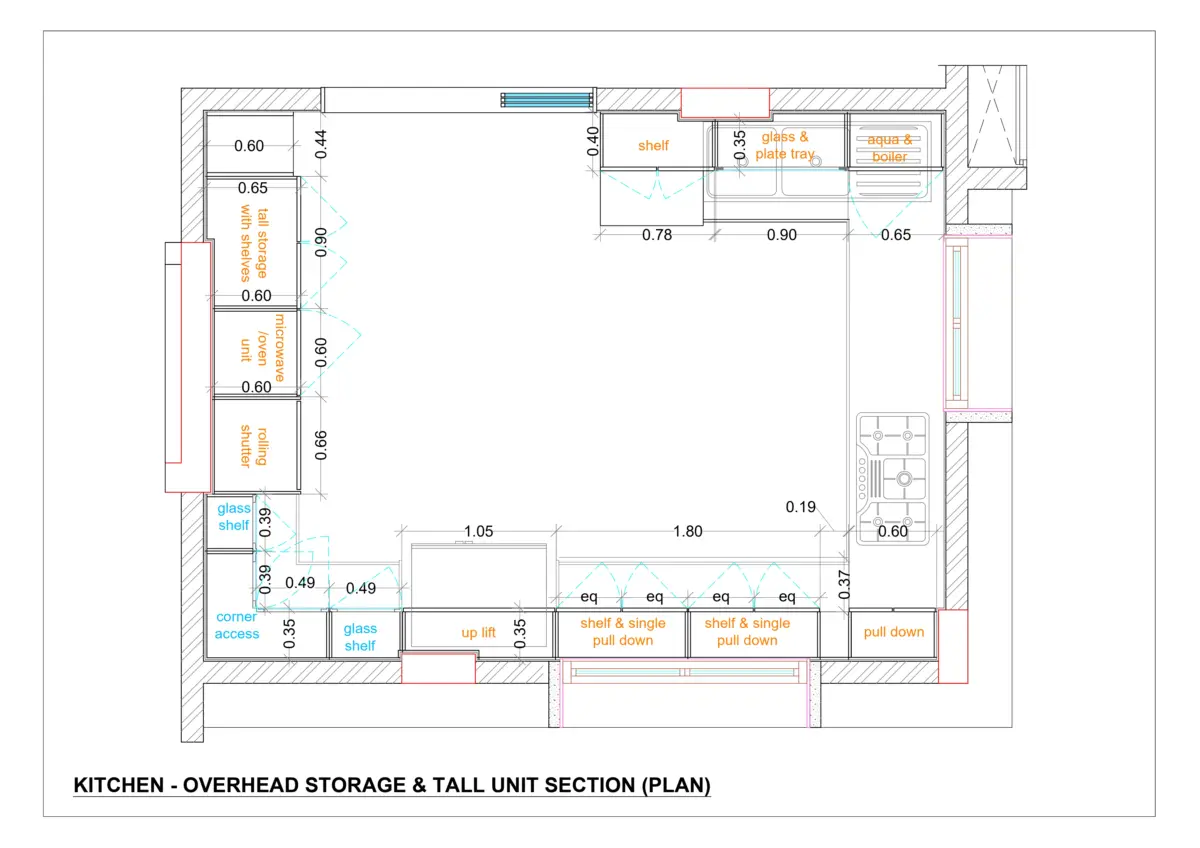

Overhead and tall-unit storage in plan and section.

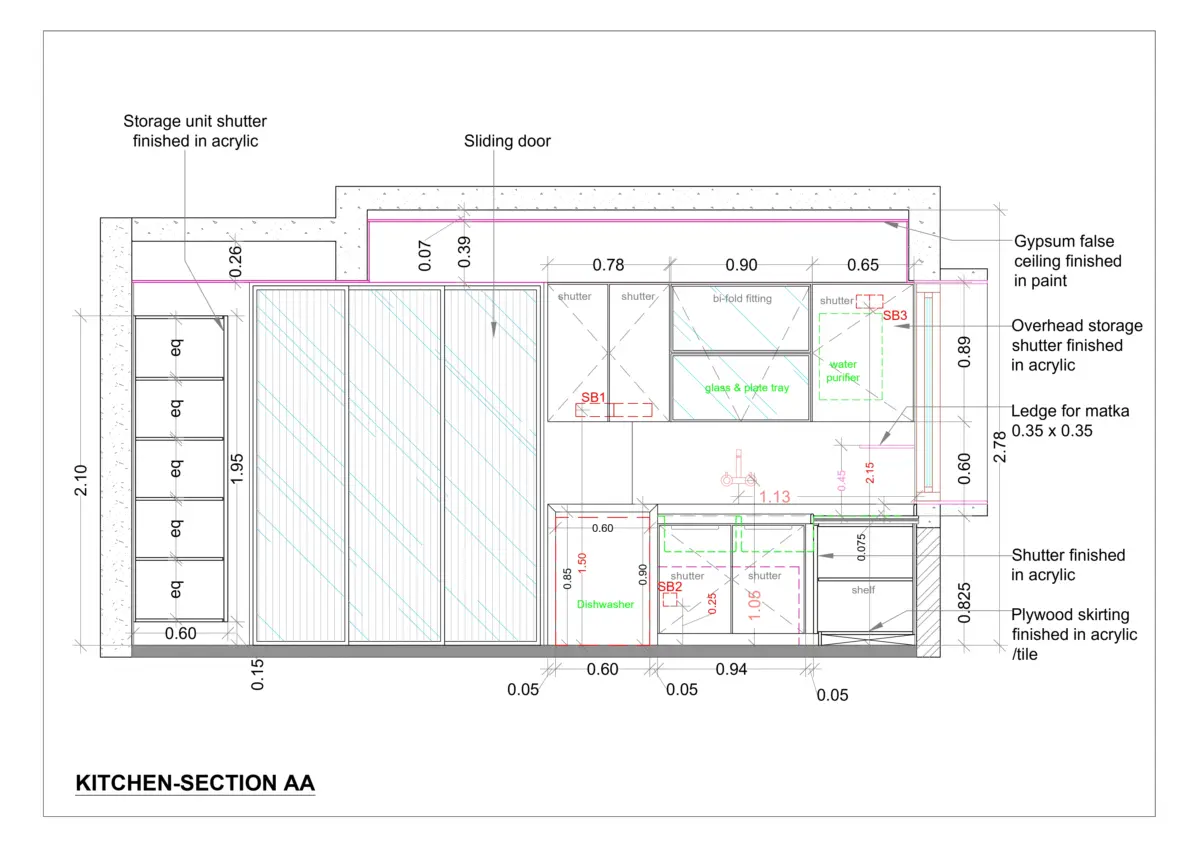

Vertical cabinetry detail along Section A.
